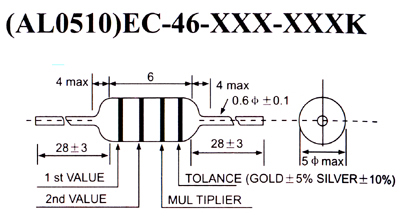

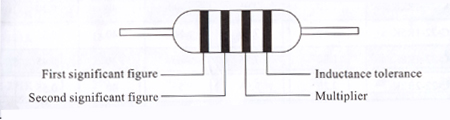

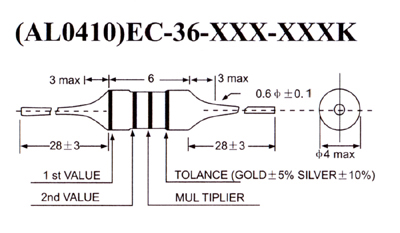

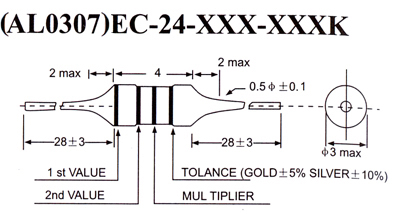

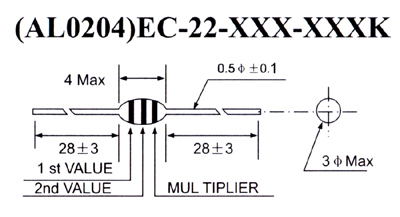

HOME > PRODUCT > - > EC** TYPE (1) Axial lead type, small lightweight design. (2) Special magnetic core structure contributes to high-Q and self-resonant frequencies. (3) Treated with epoxy resin coating for humidity resistance to ensure longer life. (4) Heat-resistant adhesives and special structural design for effective 　　open-circuit measurment. (1) Televisions,personal computer,radios,telephones and other various electronic products. Unit in mm Color Code Significant figure Multiplier Inductance tolerance(%) Black 0 1 - Brown 1 10 - Red 2 100 - Orange 3 1000 - Yellow 4 - - Green 5 - - Blue 6 - - Violet 7 - - Gray 8 - - White 9 - - Black - - ±20 Silver - 0.01 ±10 Gold - 0.10 ±5
