The surface mount inductors are designed for low cost & high Q.
Tvs & audio equipment, telecommunication devices, personal computers,
RF filters, other noise filters.

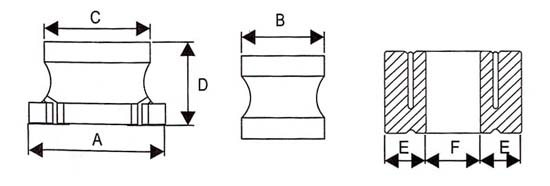

Unit in mm
TYPE A B C D E(MIN) F(MIN)
SPE3218 3.2±0.3 1.6±0.2 2.3±0.2 1.8±0.2 0.7 0.7
SPE3220 3.2±0.3 2.5±0.2 2.5±0.2 2.0±0.4 0.9 1.3
SPE4526 4.5±0.3 3.2±0.2 3.6±0.2 2.6±0.4 1.2 1.6
SPE5747 5.7±0.3 5.0±0.3 5.0±0.3 4.7±0.5 1.3 1.7
