(1) High Q over a wide frequency range.
(2) Jacket with a high temperature material which assures mechanical stability and very close tolerance.
(3) Forms a flat top making them suitable for automatic placement and reflow.
(4) Tinned leads assure reliable soldering.
(5) Standard EIA tape and reel packing.
(1) Satellite communication systems.
(2) TVs and audio equipment.
(3) Microwave euqipment.
(4) Band pass equipment.

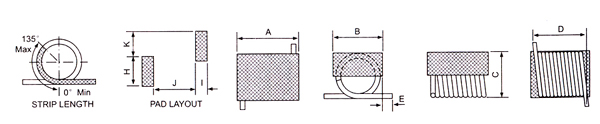

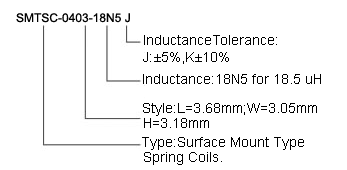

Unit in mm
SPC8 PART No. A B C D E H I J K
SMTSC0403 3.68REF 3.05REF 3.18REF 2.92±0.25 0.58±0.38 3.30 1.27 1.65 2.79
SMTSC0504 4.95MAX 3.81MAX 4.20MAX 4.32±0.39 1.53±0.39 5.16 1.48 2.85 2.62
SMTSC0703 6.86REF 3.05REF 3.18REF 5.84±0.25 0.58±0.38 3.30 1.27 4.70 2.79
SMTSC1006 10.55MAX 6.35MAX 5.97MAX 7.89±0.51 1.27±0.39 4.7 2.04 5.95 2.42
* Test equipments:
L & Q HP4291B with HP 16193A test fixture.
DCR: Milli-ohm meter.
SRF: HP8753D network analyzer.
* Electrical specifications at 25°C
