(1) Useful in wide variety of power conver-sion and line filter aplications.
(2) Wound on iron power material toroids.
(3) Low volume hand wound to hight volume automatic machine wound.
(4) 130°C or 155°C UEW-NY wire.
(5) High saturation current.
(6) Coated with varnish.
(1) Power supplies.
(2) Switching circuits.
(3) SCR and triac controls.
(4) Outpot chokes.
(5) EMI/RFI chokes.
(6) Other filters.

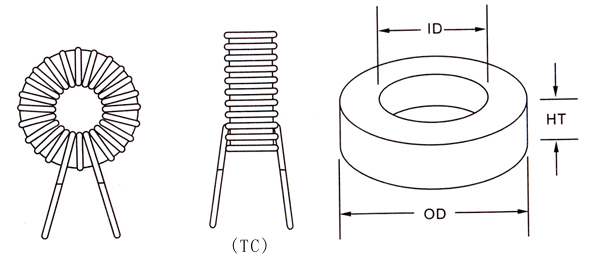

Unit in mm
PART NUMBER OD mm ID mm HT mm
TC 3026 7.80 3.84 3.25
TC 3726 9.53 5.21 3.25
TC 4426 11.20 5.82 4.04
TC 5026 12.70 7.70 4.83
TC 5026B 12.70 7.70 6.35
TC 6826 17.50 9.40 4.83
TC 6826A 17.50 9.40 6.35
TC 8026 20.20 12.60 6.35
TC 8026B 20.20 12.60 9.53
TC 9026 22.90 14.00 9.53
TC 9426 23.90 14.20 7.42
TC 10626 26.90 14.50 11.10
TC 13026 33.00 19.80 11.10
TC 13226 33.00 17.80 11.10
TC 15726 39.90 24.10 14.50
TC 03750 9.52 4.75 6.35
TC 03750G 9.52 4.75 6.35
TC 03751 9.52 4.75 6.35
TC 03751G 9.52 4.75 6.35
TC 05000 12.70 7.92 3.17
TC 5000G 12.70 7.92 3.17
TC 06250 15.88 8.89 4.70
TC 06250G 15.88 8.89 4.70
We can supply any specification as case by case
