HOME > PRODUCT > - > R6H** TYPE

(1) Compact, medium current(up to 3 Amps) high impedance EMI suppression component.
(2) Five turn configurations can provide impedance higher than 600 ohms.
(3) Core materials is Ni-Zn ferrite.
(4) Tin-covered wire.
(1) Power and signal filtering.
(2) High frequency board band transformers(balun core devices).

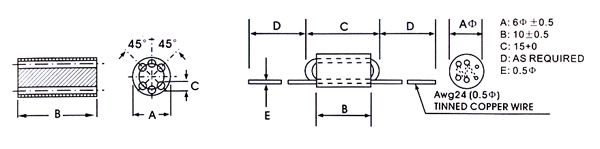

Unit in mm
A Dim B Dim C Dim
6.00±0.15 10.00±0.20 0.85±0.10
