(1) Low cost design.
(2) Low DC resistance and large current.
(3) Best for the power supply line.
(4) Also have sleeve(PET or UL tube)wrap to protect the winding.
(5) Supports automatic insert machines with taping specifications.
(1) Televisions, VCD, DVD.
(2) Personal computer.
(3) Switching pwoer supplies.
(4) Telecommunication devices.

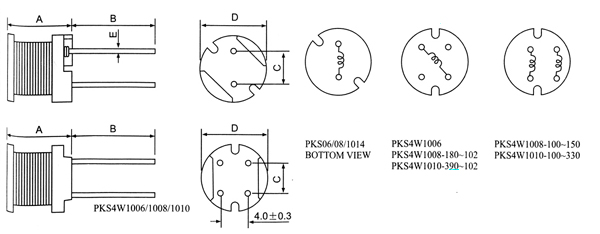

Unit in mm
SPC8 P/N A (MAX) B C D(MAX) E
PKS0605 5.2 4.0±1.0 4.0±0.3 6.5 0.50±0.1
PKS0606 6.5 4.0±1.0 4.0±0.3 6.5 0.50±0.1
PKS0805 5.5 5.0±1.0 5.0±0.3 8.3 0.6±0.1
PKS0807 7.5 5.0±1.0 5.0±0.3 8.3 0.6±0.1
PKS0809 9.5 5.0±1.0 5.0±0.3 8.3 0.6±0.1
PKS4W1006 6.5 3.5±1.0 5.0±0.3 10.5 0.8±0.1
PKS4W1008 8.5 3.5±1.0 5.0±0.3 10.5 0.8±0.1
PKS4W1010 10.5 3.5±1.0 5.0±0.3 10.5 0.8±0.1
PKS1014 14.4 5.0±1.0 5.0±0.3 10.5 0.8±0.1
* Test equipment:
L tested by HP4284 A or HP4285A LCR meter.
DCR tested by Milli-ohm meter.
Test Instruments:
*Electrical specifications at 25°C.
