(1) Low DC resistance and large current.
(2) Best for the power supply line.
(3) High dimensional accuracy.
(4) Meets UL 94V-0 flammability standard.
(5) Supports automatic insert machines with taping specifications.
(1) Televisions, VCD, DVD.
(2) Personal computer.
(3) Switching power supplies.
(4) Telecommunication devices.

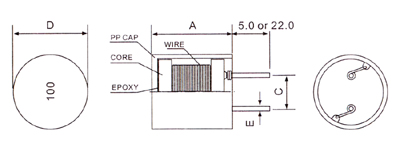

Unit in mm
SPC8 P/N A C D E
PKM0709 9.5±0.3 7.8±0.3 5.0±0.1 0.6±0.1
PKM0809 9.5±0.3 8.8±0.3 5.0±0.1 0.6±0.1
PKM1112 12.2±0.3 11.2±0.3 5.0±0.1 0.6±0.1
* Test equipment:
L: HP4284A Precision LCR meter @ 1kHz 0.25V.
Q: HP4285A Precision LCR meter.
DCR: Milli-ohm meter.
SRF: HM9461 L-SRF meter or equivalent.
* Electrical specifications at 25°C.
