(1) Ideal as a choke coil for noise filtering DC/DC applications.
(2) Small size radial lead type.
(3) Core is ferrite.
(4) Large inductance high rated current.
(5) Covered with PET sleever or UL tube.
(1) TVs and audio equipment.
(2) Telecommunication devices.
(3) Buzzers and alarm systems.
(4) Switching power supplies.
(5) Systems requiring band and high Q.
(6) Other noise filters.

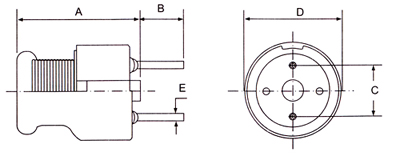

Unit in mm
SPC8 P/N A max B C D(max) E
PKB0804 TYPE 8.9 4.0±1.0 5.0±0.5 10 0.6±0.1
PKB0865 TYPE 11.5 4.0±1.0 5.0±0.5 10 0.6±0.1
PKB0809 TYPE 14.0 4.0±1.0 5.0±0.5 10 0.6±0.1
* Test equipment:
L & Q tested by HP4342 A Q meter.
DCR tested by Milli-ohm meter.
SRF tested by HM 9461 L-SRF meter.
